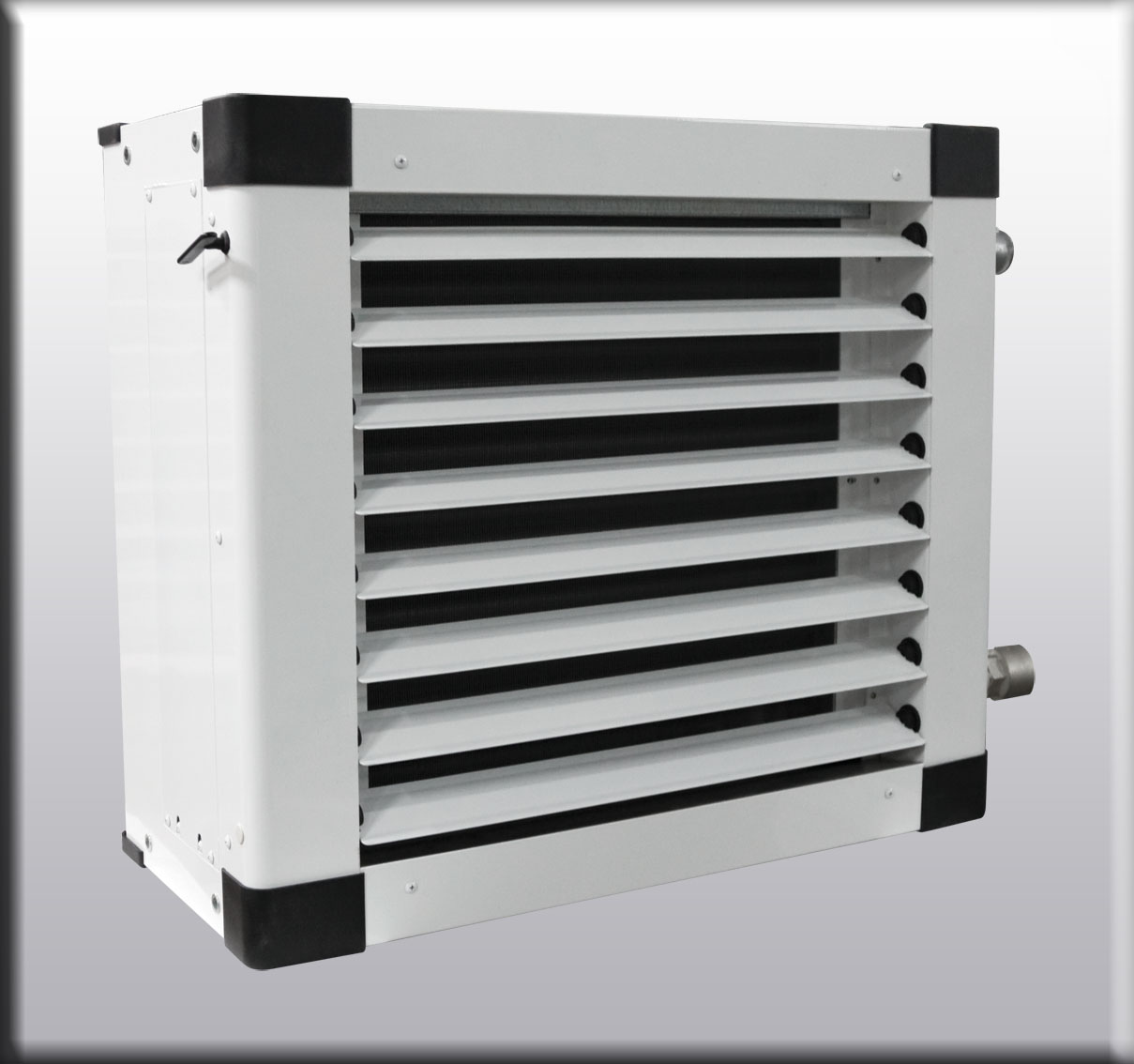

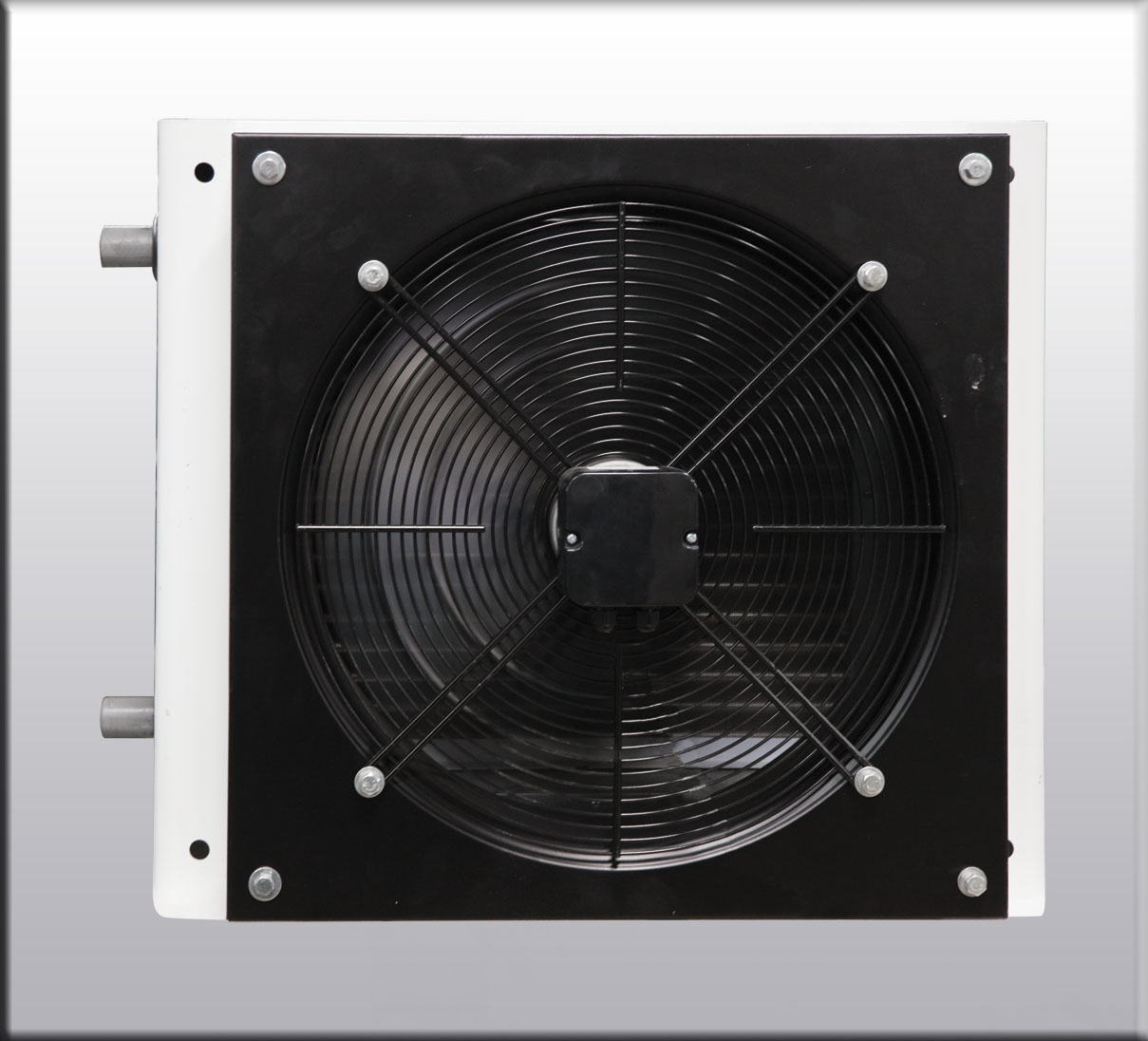

Olefini Fan Heater consists of a water element , an axial fan with a motor and a wall mounted room thermostat for it's proper operation.

HEATING CAPACITY

Heating Capacity is between 25.2kW and 68.3kW

Measured Conditions :

• Air inlet Temperature 20^oC
• Water inlet Temperature 85^oC
• Water Outlet Temperature 75^oC

COOLING CAPACITY

Cooling Capacity is between 8.6kW and 31.5kW

Measured Conditions :

• Air inlet Temperature 28^oC,

• Water inlet Temperature 7^oC
• Water Outlet Temperature 12^oC

• Relative Humidity 55%

The FH35 model is available in 4 sizes:

with 1 row Heat Exchanger model FH631

with 2 row Heat Exchanger model FH632

with 3 row Heat Exchanger model FH633

with 4 row Heat Exchanger model FH634

ROOM THERMOSTAT

- 0 up to 30^oC Temperature Range

- Winter-Summer changeover operation

- HI-LOW speed selection

- Water valve control

SPECIAL FEATURES :

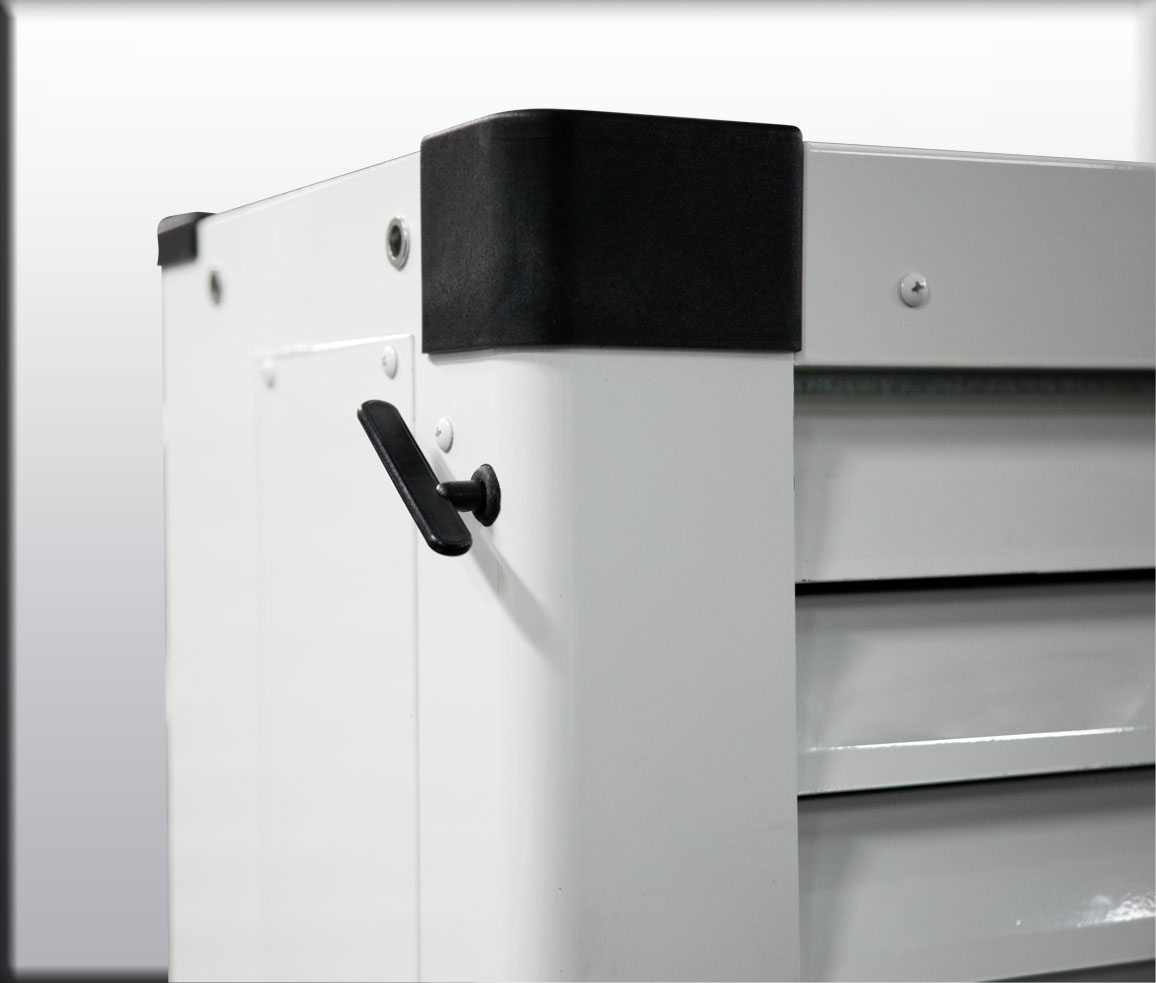

- Plastic Lever for moving the air louvers all together

-Plastic Bearing for smoothly movement of the louvers

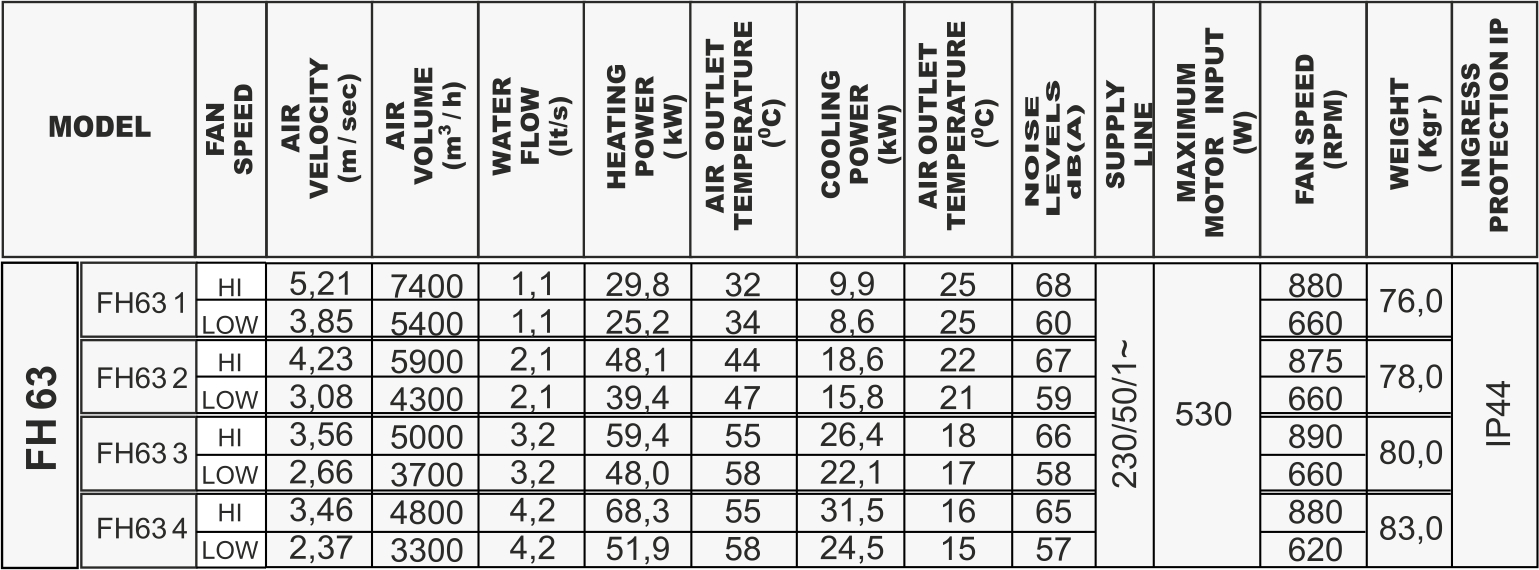

TECHNICAL CHARACTERISTICS
